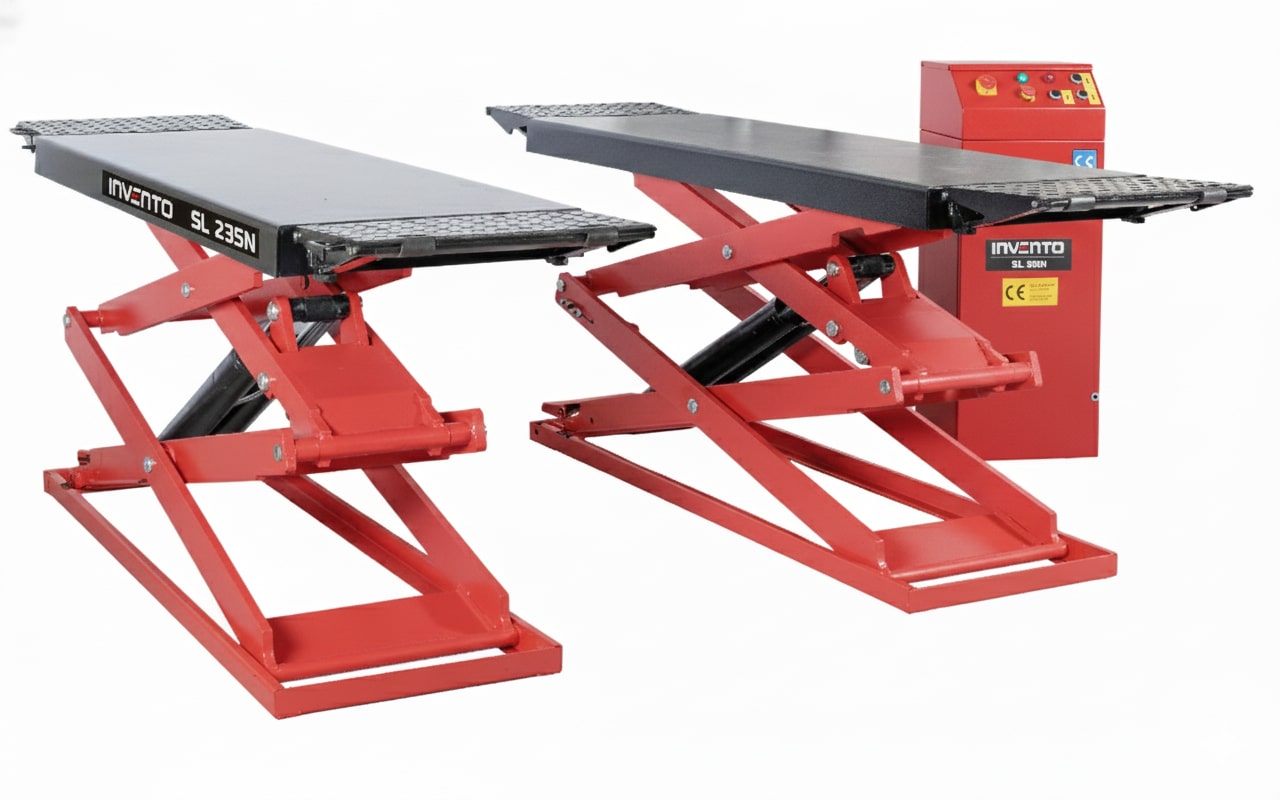

INVENTO SL 235N is an above-floor lift designed for underbody lifting of vehicles weighing up to 3.5 tons. The SL 232 S is equipped with 2.077 m long platforms with adjustment that facilitates daily work. It enables lifting vehicles to a height of 1.9 m. Key information about the lift: Working position secured by a double piston system (no mechanical safety locks) Only 105 mm height when fully lowered Synchronized platform movement 800 mm of free space between the platforms Adjustable platform length: 1,547 – 2,077 mm The SL 235N lift is equipped with all necessary safety features required by CE documentation. This ensures long and safe operation in the workshop. The lift is designed for installation in enclosed indoor spaces free of obstacles. Operating temperature range: –5°C to 40°C. Floor preparation: The lift must be installed on a C20/25 concrete floor with a minimum thickness of 15 cm.

TEKNISET TIEDOT

Parameter Value Lifting capacity 3,500 kg Lifting height 1,900 mm Minimum height 105 mm Platform length 1,547 mm – 2,077 mm Platform width 650 mm Distance between scissors 800 mm Total width 2,100 mm Lifting time 45 – 50 s Power supply 400 V / 50 Hz Power 3 kW
